CuBe2Pb Leaded Beryllium Copper Rods 1.0mmDia. x 2000mmL Hard Temper
Product Description:
| Product Name | Beryllium copper rods |
| Grade | CuBe2Pb |
| End Product Form | Rods |
| Standard | ASTM B196 |
| State of product | TD04 |
| Processing | Seamless / Welding |
| Feature | With high strength and high conductivity |
| Specification | Dia 1.0mm; Length 2000mm or according customers' requirement |
Chemical Composition of CuBe2Pb Copper Alloys:
| CUBERYLLIUM® Brand | UNS-Number | Beryllium | Cobalt
+ Nickel | +Cobalt
+ Nickel
+ Iron | Pb | Copper |
| Cuberyllium-C173 | C17300 | 1.80-2.00 | 0.20 min | 0.6 max | 0.2～0.6 | Balance |
Note: Copper plus additions equal 99.5% minimum.
Mechanical and Electrical Properties of CuBe2Pb Copper Rods:
| Temper(*) | Diameter | Heat Treatment | Tensile Strength ksi | Elogation Percent (Min) | Electrical Conductivity Percent IACS | Hardness Rockwell B or C Scale |
| A(TB00) | ALL SIZE | / | 400~600 | 30 | 15~19 | B45~85 |
H(TD04)
| 5~10 | / | 660~900 | 5 | 15~19 |
＞B88
|
| ＞10~25 | / | 620~860 | 5 | 15~19 |
| ＞25 | / | 590~830 | 5 | 15~19 |
| AT(TF00) | ALL SIZE | 3 hr 320°C | 1100~1380 | 2 | 22~28 | C35~42 |
| HT(TH04) | 5~10 | 2 hr 320°C | 1200~1550 | 1 | 22~28 | C37~45 |
| ＞10~25 | 1150~1520 | 1 | 22~28 | C36~44 |
| ＞25 | 1120~1480 | 1 | 22~28 | C35~44 |
What are the Properties of Beryllium Copper?
Properties of BeCu:
Beryllium copper is a ductile, machinable, and weldable alloy.
BeCu has an excellent response to precipitation-hardening treatments.
BeCu has excellent thermal conductivity (62 Btu/ft-deg.F-H), and it is about 3-5 times more conducting than Tool steel.
It shows resistance to stress relaxation.
It is resistant to non-oxidizing acids such as hydrochloric acid (HCl) and carbonic acid (H2CO3), to plastic decomposition products, to abrasive wear, and galling.
It can be heat-treated for increased strength, durability, and electrical conductivity.
Beryllium copper displays the maximum strength (up to 1,400 MPa (200,000 psi)) of any copper-based alloy.

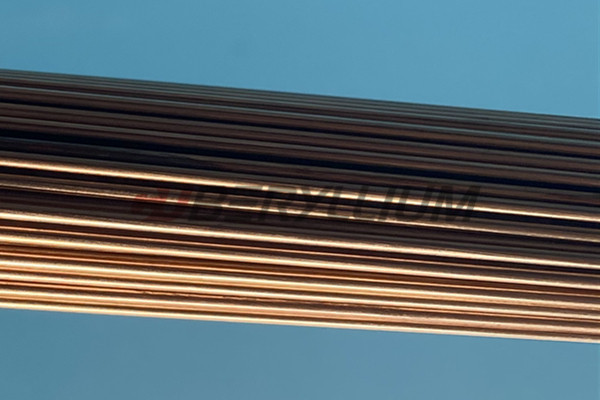

Product Photo:
FAQ:
Q1: What’s the advantages the Beryllium Copper of CUBERYLLIUM®?
A1: 1: The Biggest Coil weight could be reach 1200kg/Coil.
2: We are the only one who melting by Vacuum semi-Continuous Furnace.
3: Surface further polishing for top clients.
Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.
Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
